Ramps for wheelchairs and disabled scooters.
The Folding Rail Ramp is available in three sizes:
- R 020-110 - Total length approximately 110 cm
- R 020-150 - Total length approximately 150 cm
- R 020-200 - Total length approximately 200 cm

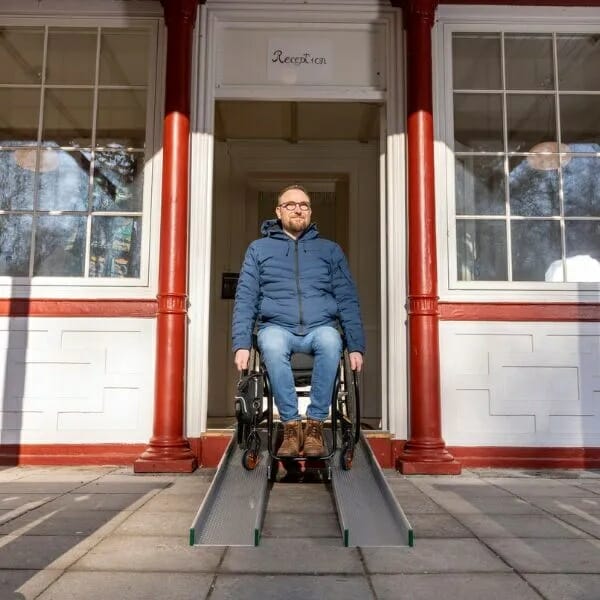

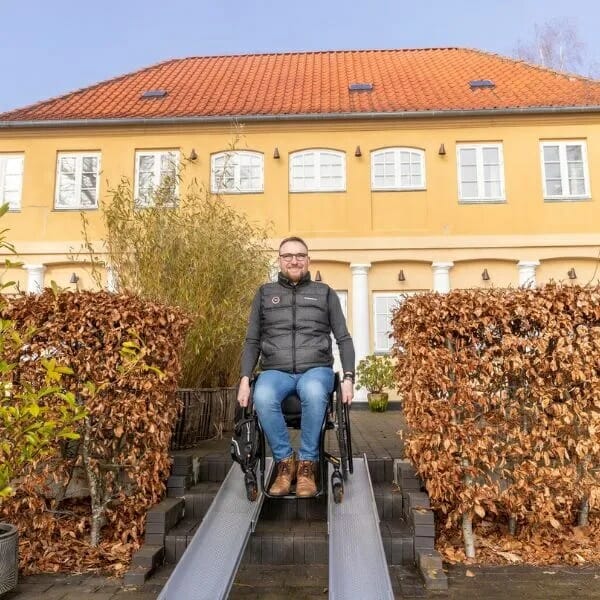

Folding ramp for disabled
The
Folding Rail Ramp for Disabled People is particularly suitable for uniform height differences, does not require much space when not in use and is easier to transport than fixed ramps.
The track ramps are equipped with foldable handles, an integrated non-slip surface with holes for water and dirt drainage, thus ensuring reduced wear and a solid support point in any condition. The locking function prevents the ramp from slipping during transport.
This type of ramp is available in three sizes with total lengths of approximately 110, 150 and 200 cm.
Available sizes
| Code |
Adjustable length max/min
|
Internal external width
|
Maximum capacity
|
Weight per piece |
| R 020-110
|
1040/570 mm |
210/235 mm |
400 Kg |
3.8 kg |
| R 020-150
|
1440/760 mm |
210/235 mm |
400 Kg |
4.9 kg |
| R 020-200
|
1940/1010 mm |
210/235 mm |
400 Kg |
6.3 kg |
Choosing the right length of ramps Always choose the longest possible
ramp that suits your needs. In fact, the longer the ramp, the lower the degree of inclination you will have to deal with. In general, the following ramp lengths are recommended in relation to the indicated inclination.
■ For independent users of manual wheelchairs:
■ For users of manually operated wheelchairs who require assistance from an accompanying person:
■ Example: to overcome a height difference of 20 cm and a maximum gradient of 1:5, a 100 cm ramp should be used (5 x 20=100).
See proportions on the diagram below.
Degree of inclination diagram 1:5
